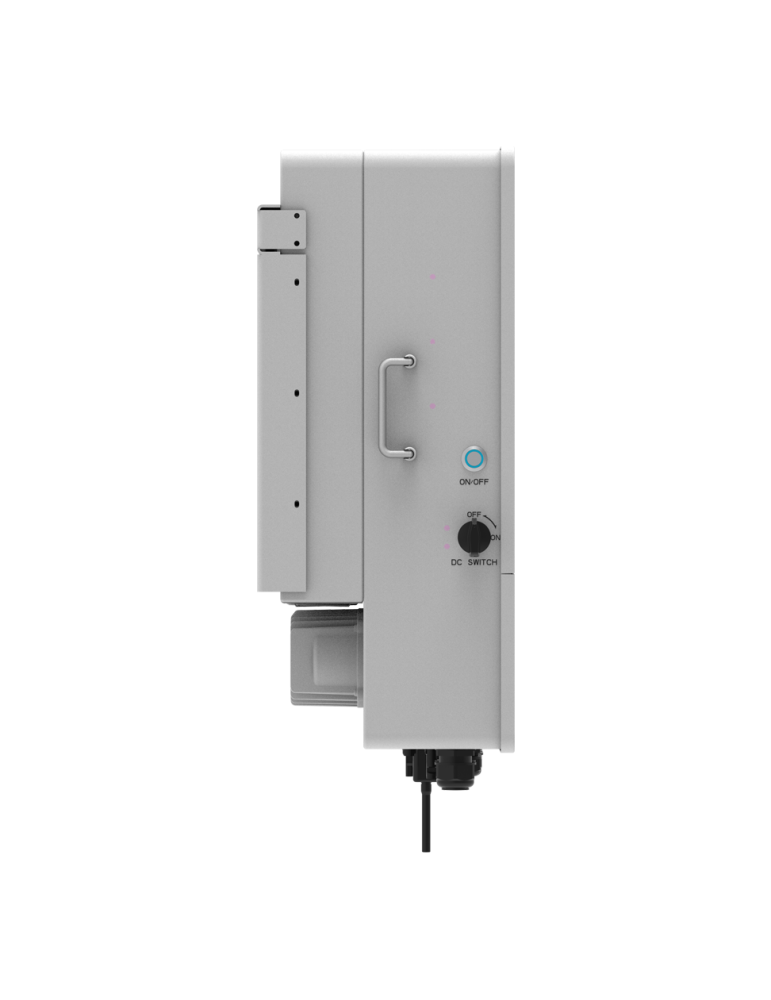

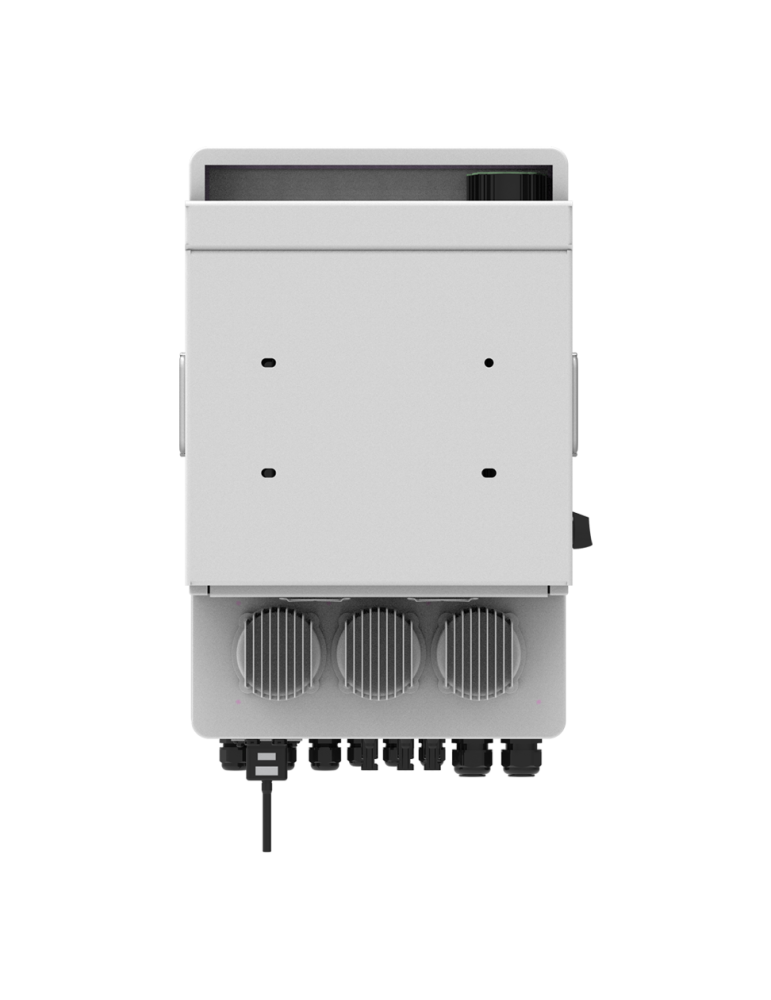

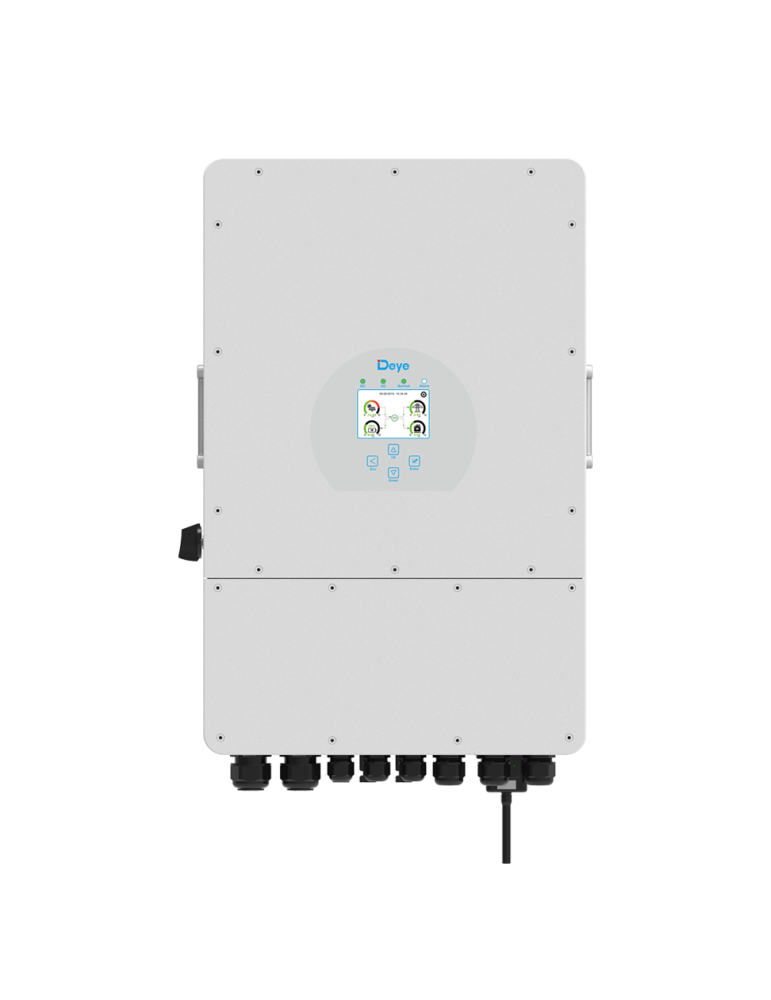

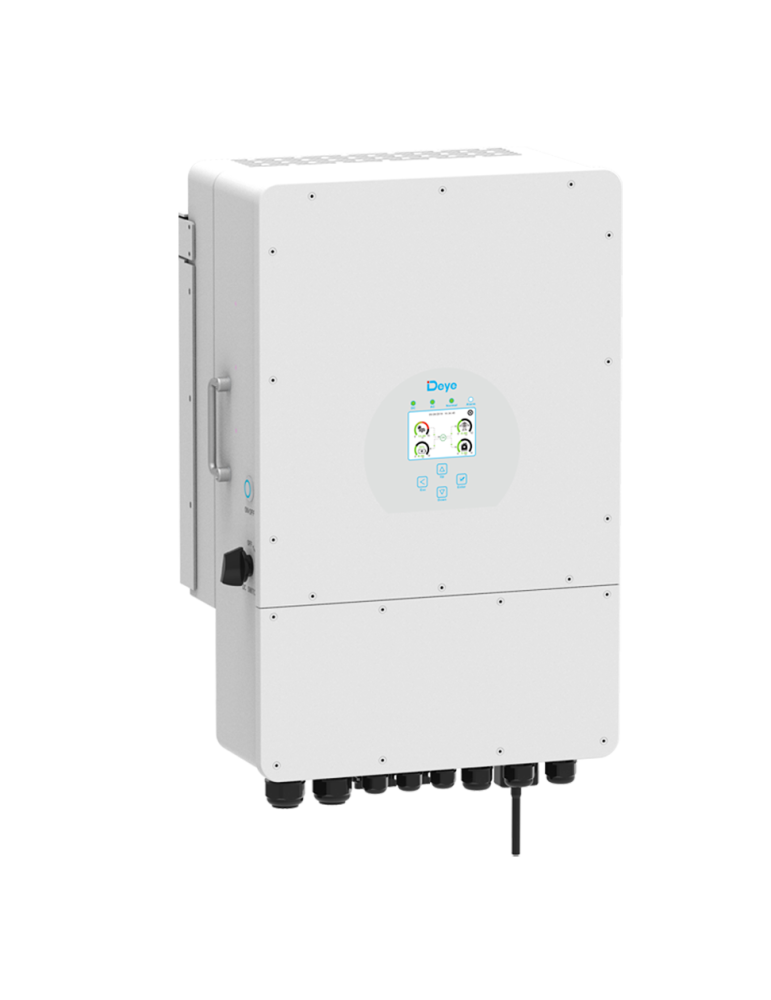

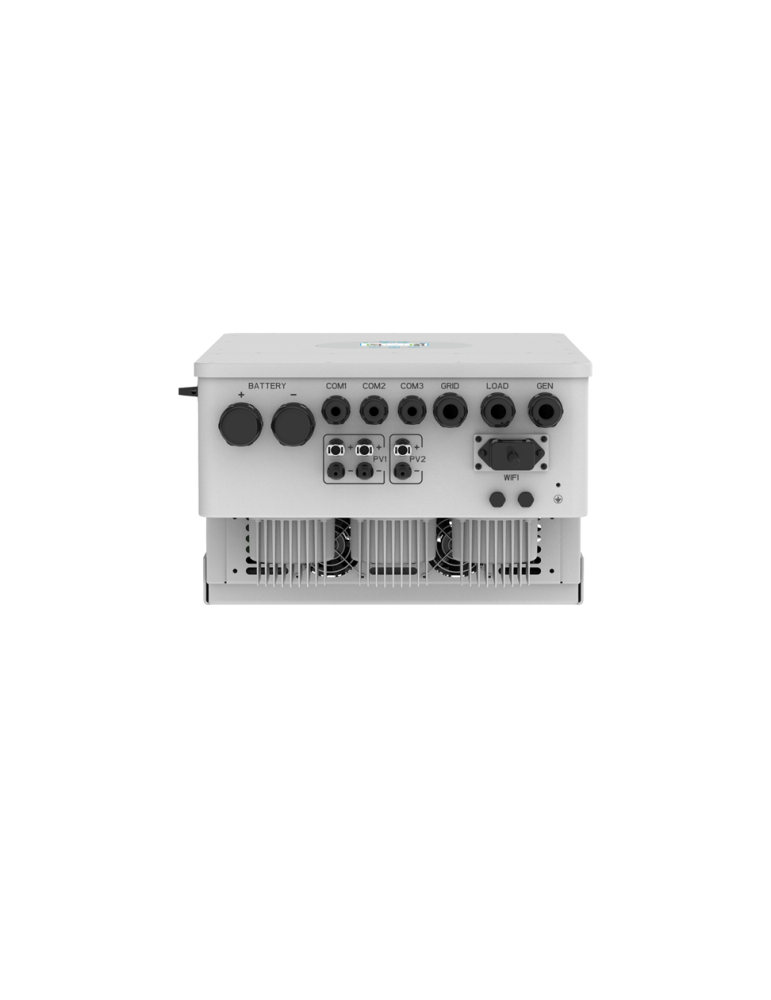

Deye 10kW Hybrid 3-Phase SUN-10K-SG04LP3-EU Inverter

Hybrid 3-Phase Inverter

Max Efficiency 97.6%

Max Charging/Discharging Current of 240A

Availability Upon Request
Pricing The quote excludes VAT & transportation costs
Minimum Order Quantity            1 Carton
Shipping Type On request
Category

Inverter/3 Phase/2 MPPTs

100 Items
Deye
Quantity

HomeInverters
Description

100% unbalanced output, each phase; max output up to 50% rated power

IP65 protection degree

AC coupled to retrofit existing solar system

Max. 10 pcs parallel for on-grid and off-grid operation, support multiple batteries parallel

48V low voltage battery, transformer isolation design

6 time periods for battery charging/discharging

Support storing energy from diesel generator

Product Details
100 Items

Data sheet

  • 422mm*702mm*281mm
  • 33.6kg
  • SUN-5/6/8/10/12K-SG04LP3-EU
  • 5 years (standard), 10 years (optional)
  • IP65
  • -40°C~+60°C
  • 13000W
  • 800V
  • 200-650V
  • 550V
  • 160V
  • 2
  • 10000W
  • 11000V
  • 3/N/PE, 220V/380V, 230V/400V
  • 97.6%
