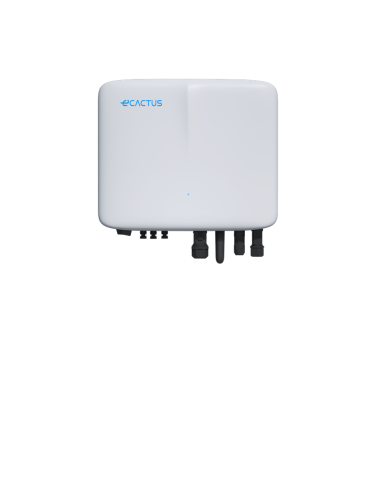

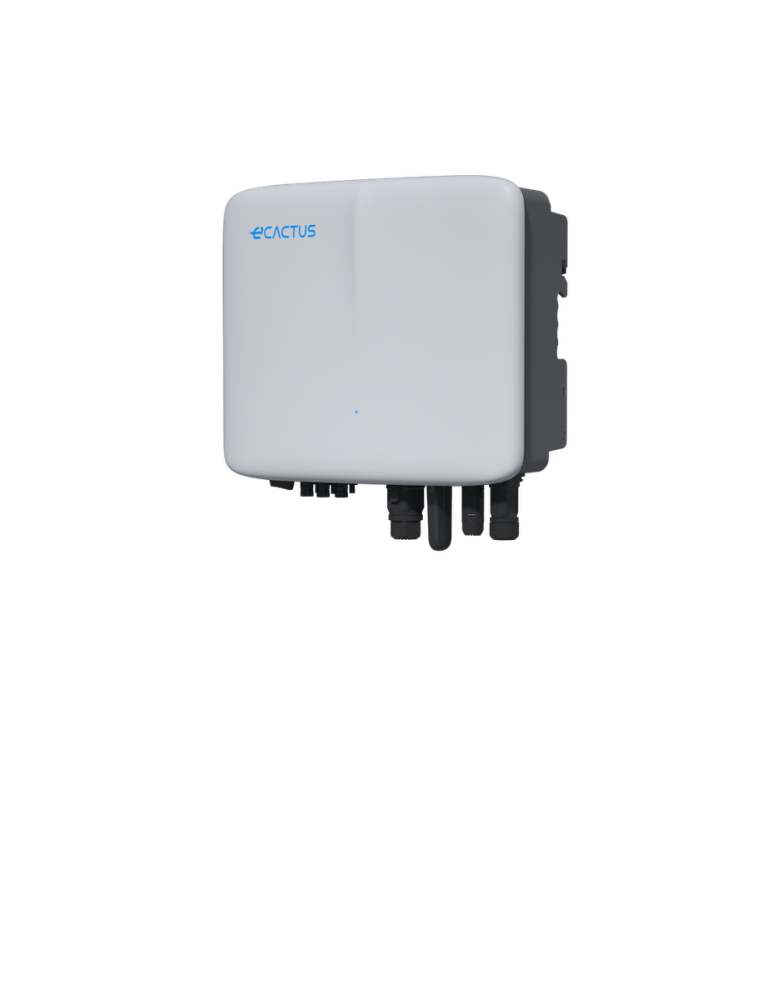

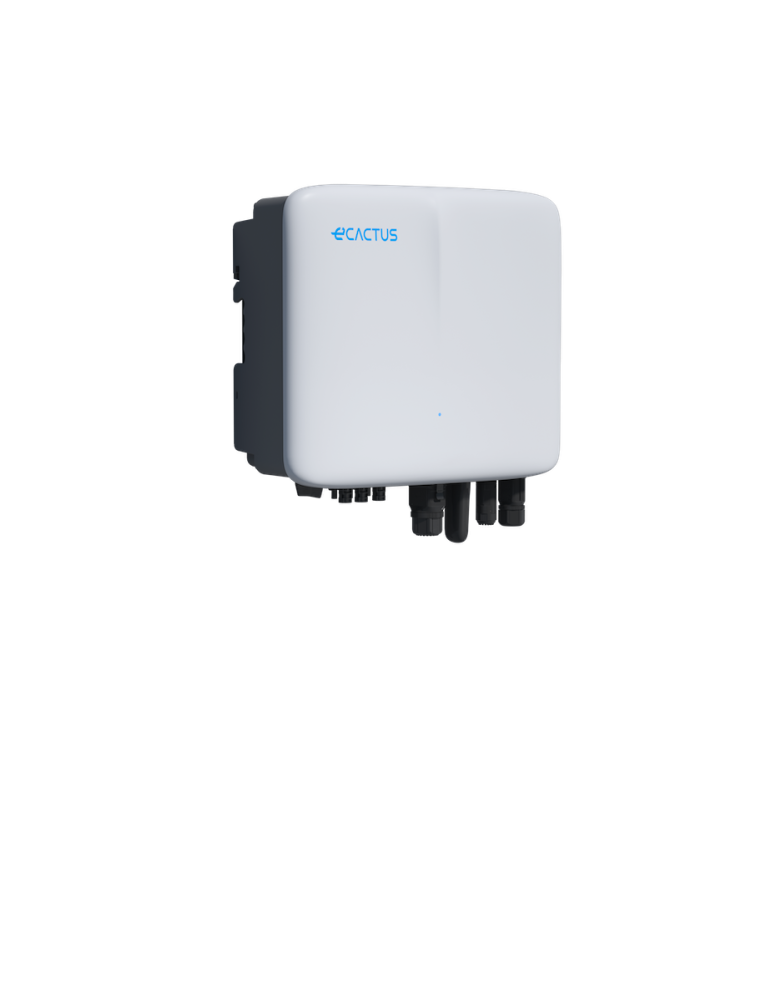

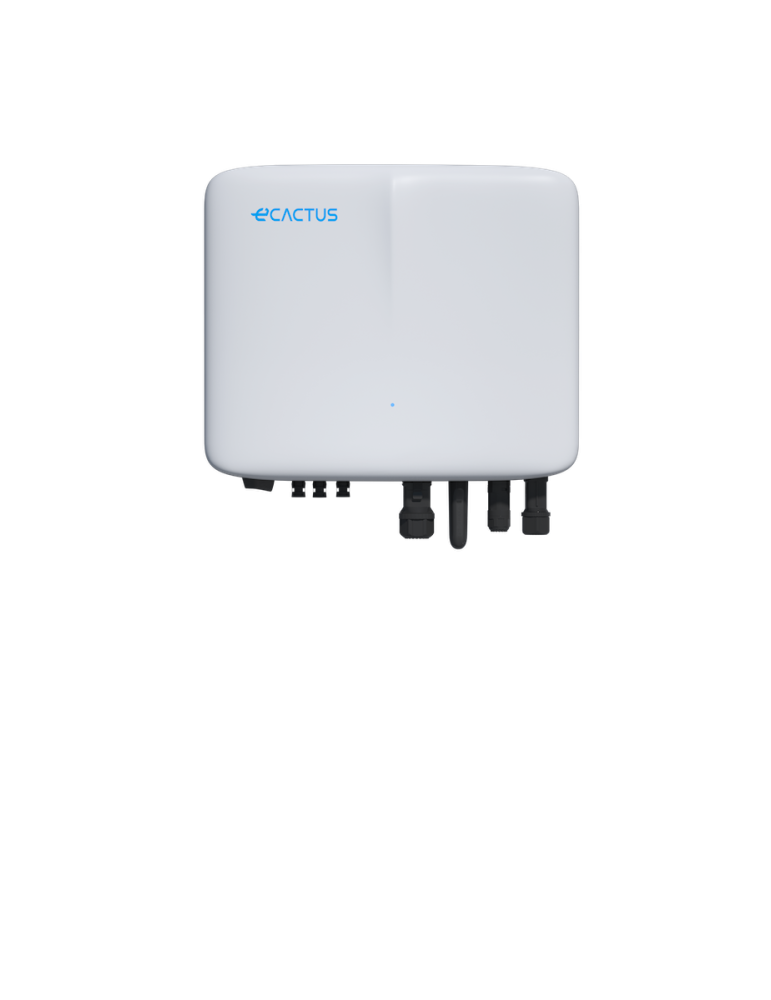

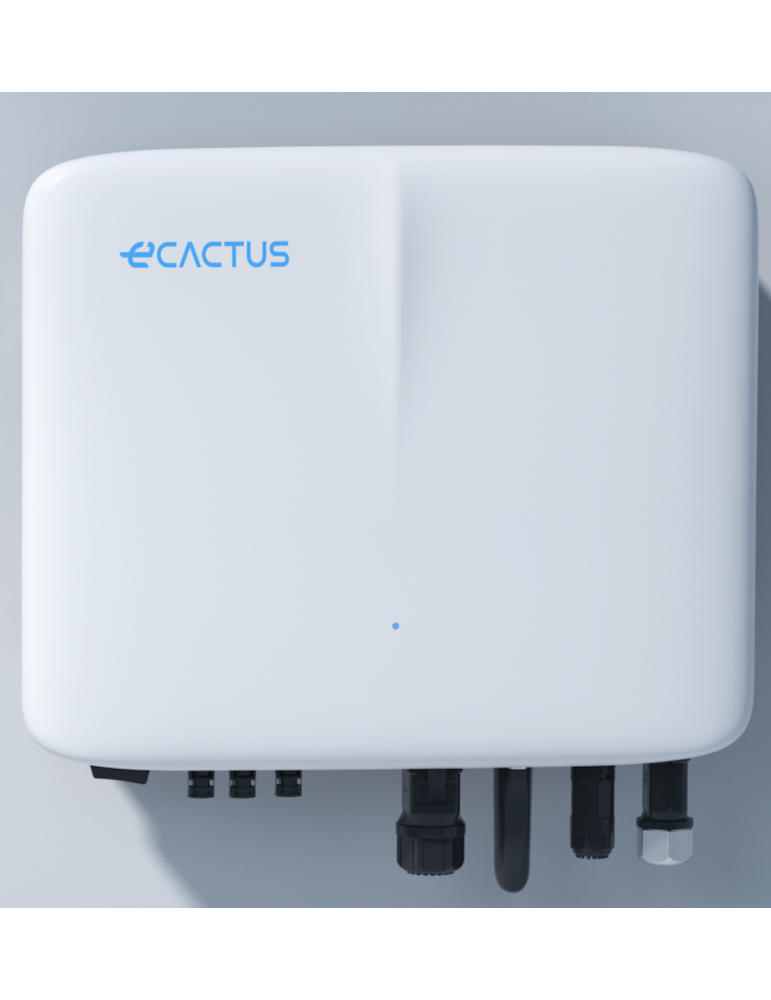

eCACTUS Copia-TH WH-THA103 10KW Three Phase Hybrid Inverter

Three Phase Hybrid Inverter

Power Output Range: 5-16KW

Battery Voltage Range: 160-700V

Compatible with various brands of batteries

IP65 Protection

98% Efficiency

Availability On Request
Pricing The quote excludes VAT & transportation costs
Minimum Order Quantity            1 set
Shipping Type On request
Category

Inverter/2 MPPTs
eCACTUS
Quantity
Add to Wishlist
Add to Compare

Home,  Inverters
Description

Copia-TH series compatible with single-phase load and three-phase load, supports 110% unbalanced load and is suitable for various home application environments.

Compelling

1.5 DC/AC ratio, Max 18A DC input current per string

Up to 110% three-phase unbalanced output

Capable

Higher charge/discharge efficiency up to 98.5%/97.7%

Less energy loss on battery and inverter interaction

Stable

Uninterrupted power supply and off-grid switching time is less than 10ms

Smart

 VPP and IOT ready

Support remote update and control via ECOS

Secured

10 years warranty, 24-hr service response

Product Details

Data sheet

  • 510mm*205mm*480mm
  • 28kg
  • WH-THA103
  • 10 years
  • Class I
  • -25°C~+60°C
  • 145V
  • 1000V
  • 15000W
  • 620V
  • 10000W
  • 3/N/PE, 220V/380V, 230V/400V, 240/415
