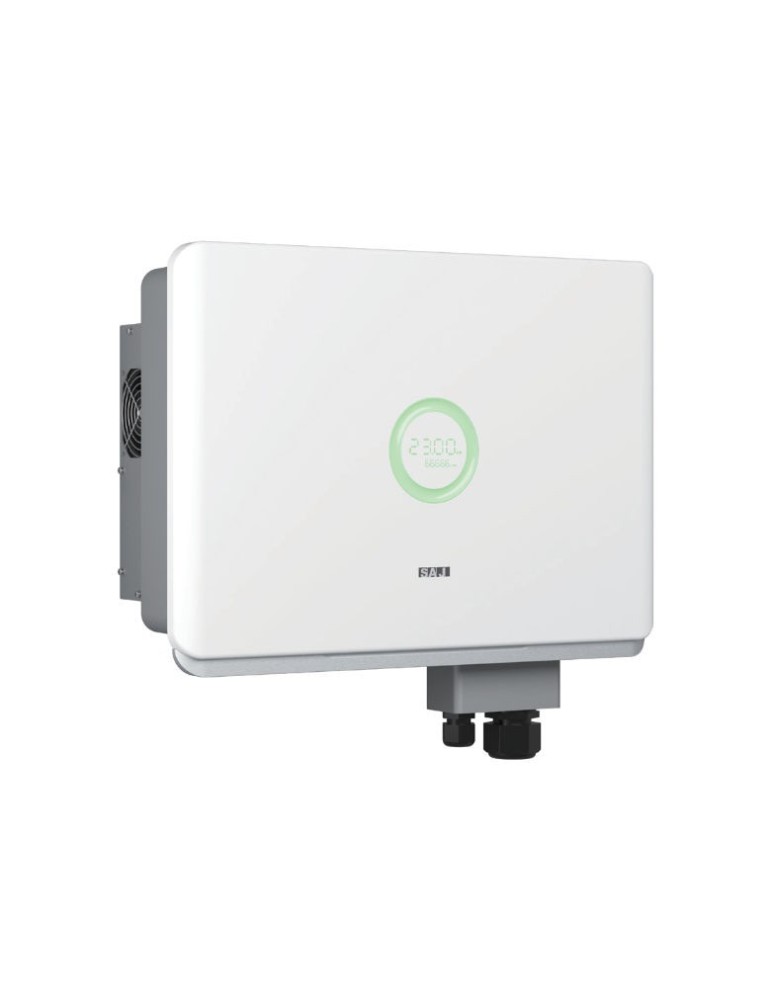

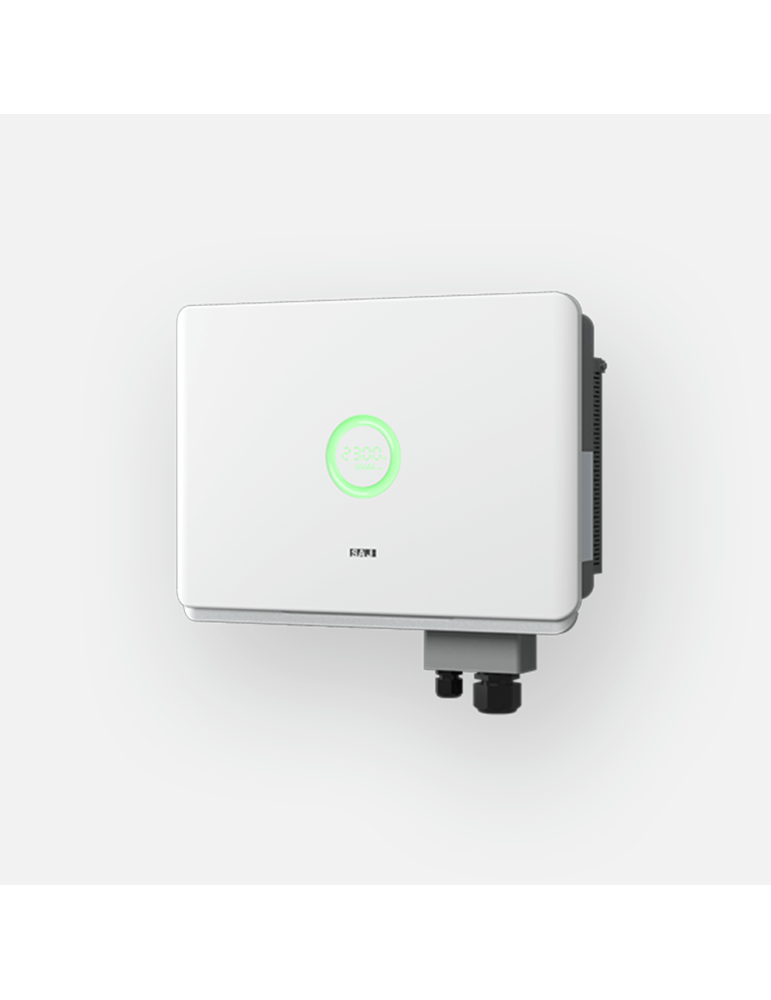

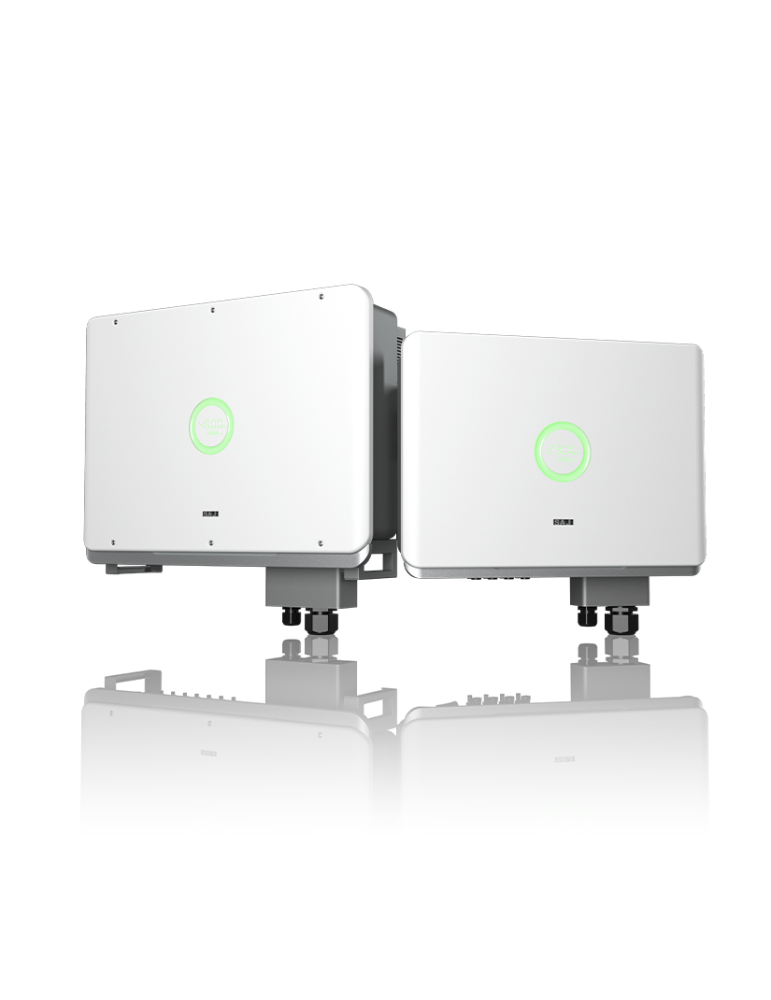

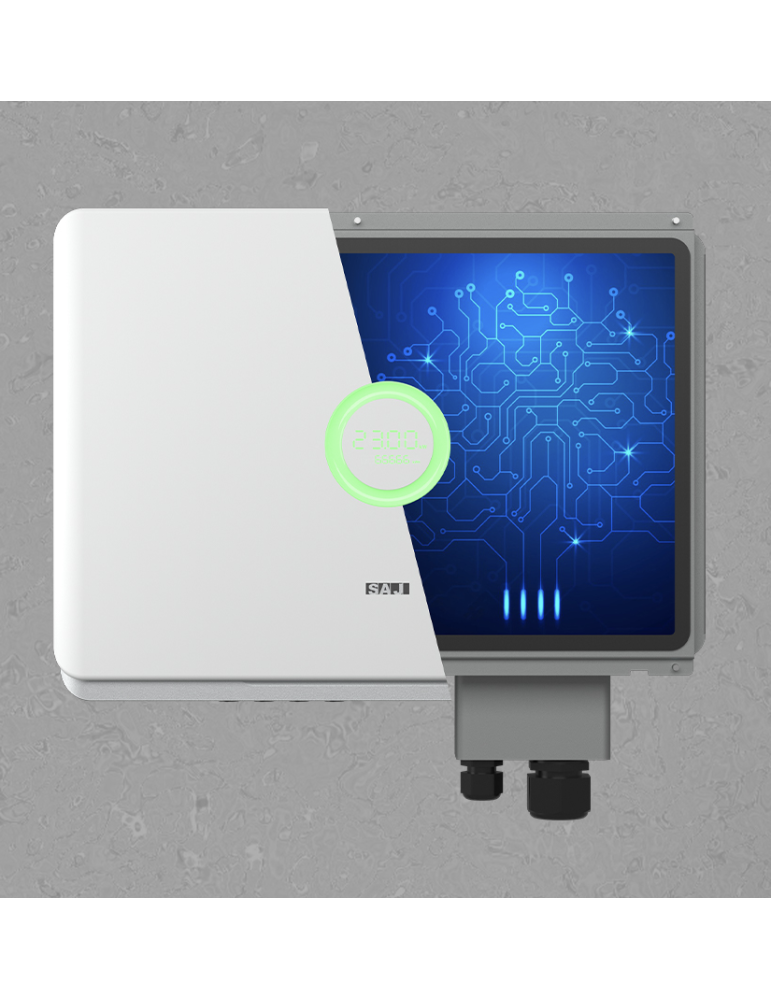

SAJ R6-20K-T2-32 Inverter

SAJ R6 Series 3 Phase Inverter

2 MPPT

Max Efficiency 98.8%

16A String Current

DC 150% oversizing & AC 110% overloading

Availability In Stock
Pricing The quote excludes VAT & transportation costs
Minimum Order Quantity            1 Carton
Shipping Type On request
Category

Inverter/3 Phase/2 MTTP

100 Items
SAJ
Quantity

HomeInverters
Description

Lightning protection, high precision leakage monitoring

Low standby consumption, high efficiency & high yield

APP connection, all data at real-time

Remote maintenance & configuration

Quiet generation, no noise pollution

Intelligent & grid-friendly, active response to grid dispatch

24/7 load monitoring solution (optional)

Smart commercial monitoring solution (optional)

Product Details
100 Items

Data sheet

  • 409mm*558mm*234mm
  • 23.7kg
  • 5 years (standard), 10 years (optional)
  • -40°C~+60°C
  • 30000W
  • 1100V
  • 180-1000V
  • 600V
  • 200V
  • 2
  • 20000W
  • 22000V
  • 180-280 /312-485
  • 98.8%
