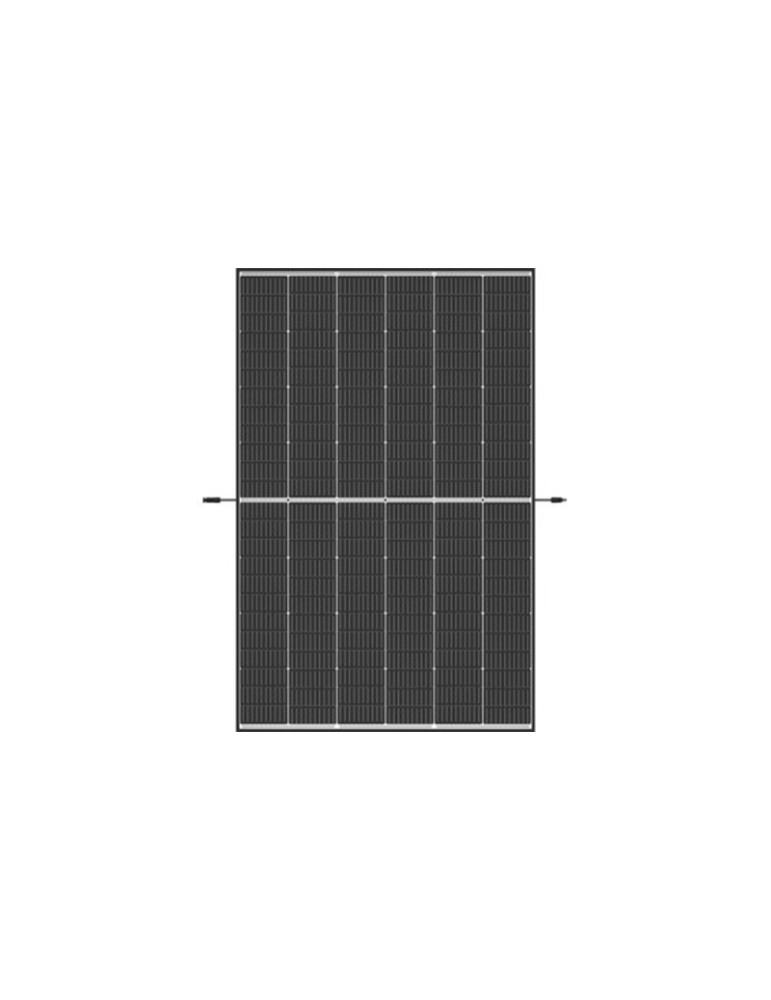

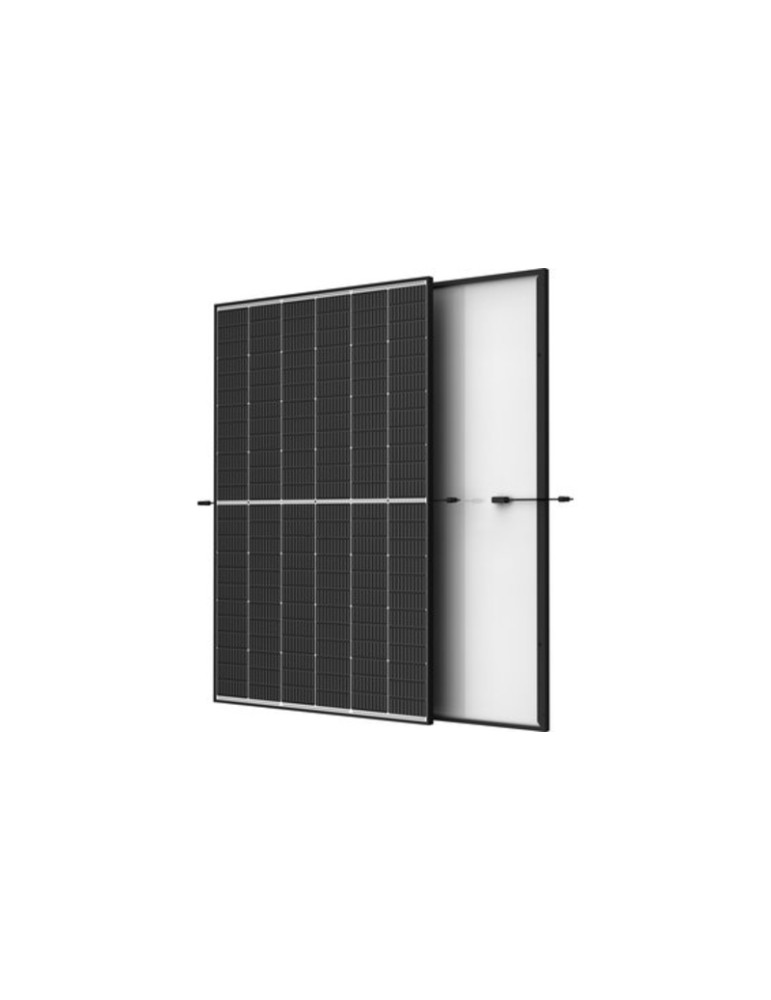

Trina Solar 420W Monofacial Silver-Frame TSM-DE09R.08/ 415~435
Write your review
| Availability | In stock |
| Pricing | The quote excludes VAT & transportation costs |
| Minimum Order Quantity | 1 container |
| Shipping Type | On request |
| Category |
Solar Panel / Silver-Frame / Monofacial / Crystalline / Mono / N-type |
TSM-DEG9R.28/ 420W
• Small in size, bigger on power
• Up to 445W, 22.3% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping, lower series resistance, improved current collection and enhanced reliability • Reduce installation cost with higher power bin and efficiency • Boost performance in warm weather with low temperature coefficient and operating temperature
• Dual-glass Design, more secure and sustainable
• Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
• Excellent fire rating, weather resistance, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity area and harsh environment
Ultra-low Degradation, longer warranty, higher output
• First-year degradation 1% and annual degradation at 0.4%
• Up to 15 years product warranty and 30 years power warranty
• Universal solution for residential and C&I rooftops
• Easy for integration, designed for compatibility with existing mainstream inverters and diverse mounting systems
• Perfect size and low weight for handling and installation
• Most valuable solution on low load capacity rooftops (weight similar to backsheet version)
• Mechanical performance up to 5400 Pa positive load and 4000 Pa negative load
Data sheet
- 1762 mm*1134 mm*30 mm
- 21.8 kg
- TSM-DE09R.08 415~435W
- 15 year Product Workmanship Warranty, 25 year Power Warranty
- 435W
- 50.1V
- 10.58A
- 42.0V
- 10.01A
- 21%
- -40°C~+85°C
- 43°C (±2°C)
- +0.04%/°C
- - 0.25%/°C
- -0.34%/°C
- Irradiance at 800 W/m2, Ambient Temperature 20°C, Wind Speed 1 m/s
- Black
- Mono-facial
