410W DAH Solar Full Screen DHM-66L9/FS(BB) PV Module
Write your review
Global Patents Technology

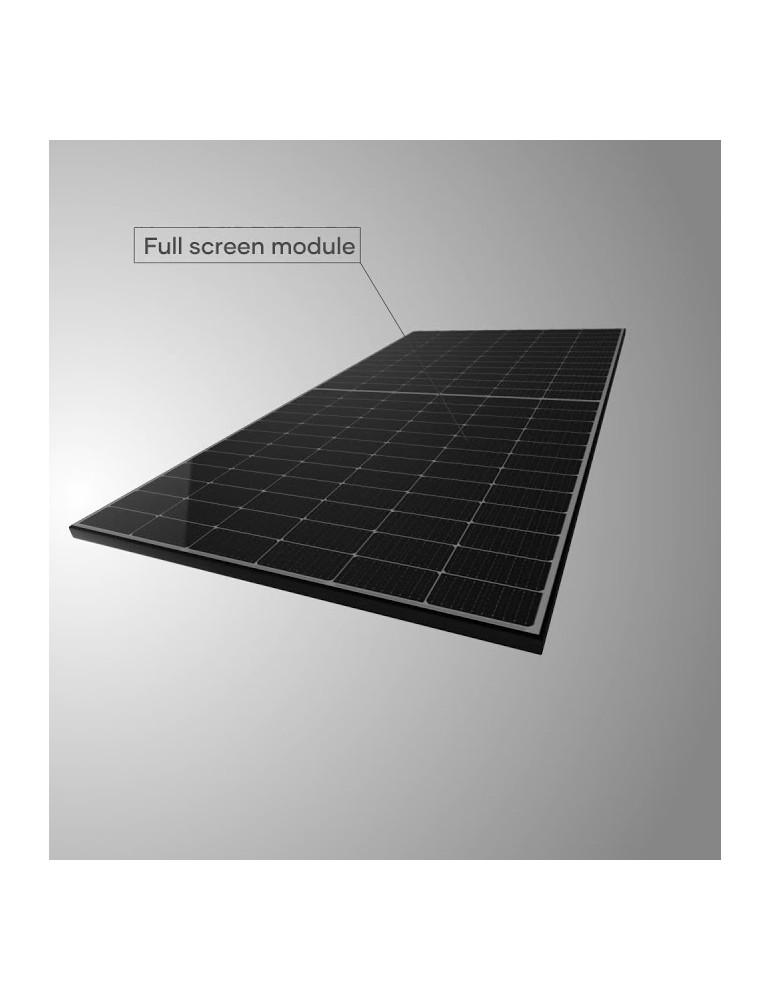

Full Screen PV Module
No Dust and Dirt on the Surface
Increase Power Generation
| Availability | In Stock |
| Pricing | The quote excludes VAT & transportation costs |
| Minimum Order Quantity | 1 Pallet |
| Shipping Type | On request |
| Category |
Solar Panel/Full Screen/All Black |
100 Items
Optimal Process Design
166mm+9BB+Haf-cut, higher power output
Curved Surface 128 degree R Angel Reduce Holding Pressure by 75%+
Curved frame with ergonomic design, optimized delivery and installation experience
Process Upgraded
Lower risk of hot spot and stronger anti-PID ability
Higher Power Gains and Lower Losses
Excellent low irradiance performance and low shadow loss
100 Items
Data sheet
- 1924mm*1038mm*32mm
- 22kg
- DHM-66L9/FS (BB)

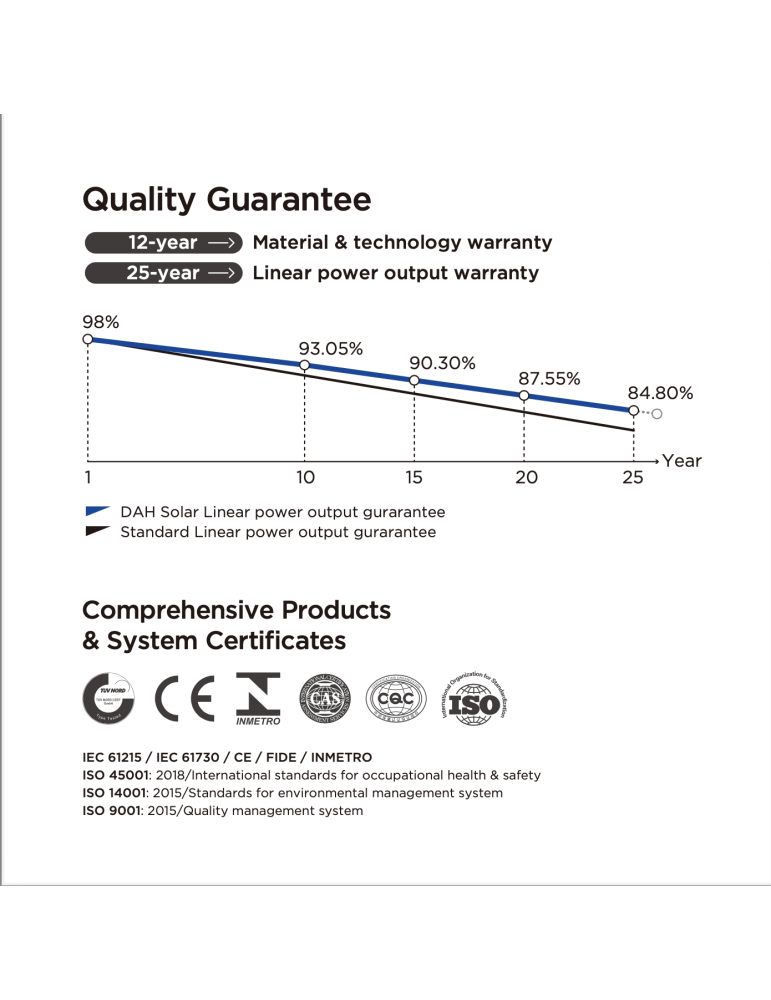

- 12 years Product Material & Workmanship, 25 Years Linear Performance
- 410 W
- 45.2V
- 11.36A
- 37.6V
- 10.9A
- 20.53%
- 0~+5W
- 1500V
- 20A
- IP68
- 5400Pa
- 2400Pa
- -40°C~+85°C
- 45±2°C
- +0.050%/°C
- - 0.31%/°C
- -0.350%/°C
- Irradiance 1000 W/m2, Cell Temperature 25°C, AM1.5
- Irradiance at 800 W/m2, Ambient Temperature 20°C, Wind Speed 1 m/s
- Black
- Mono-facial
