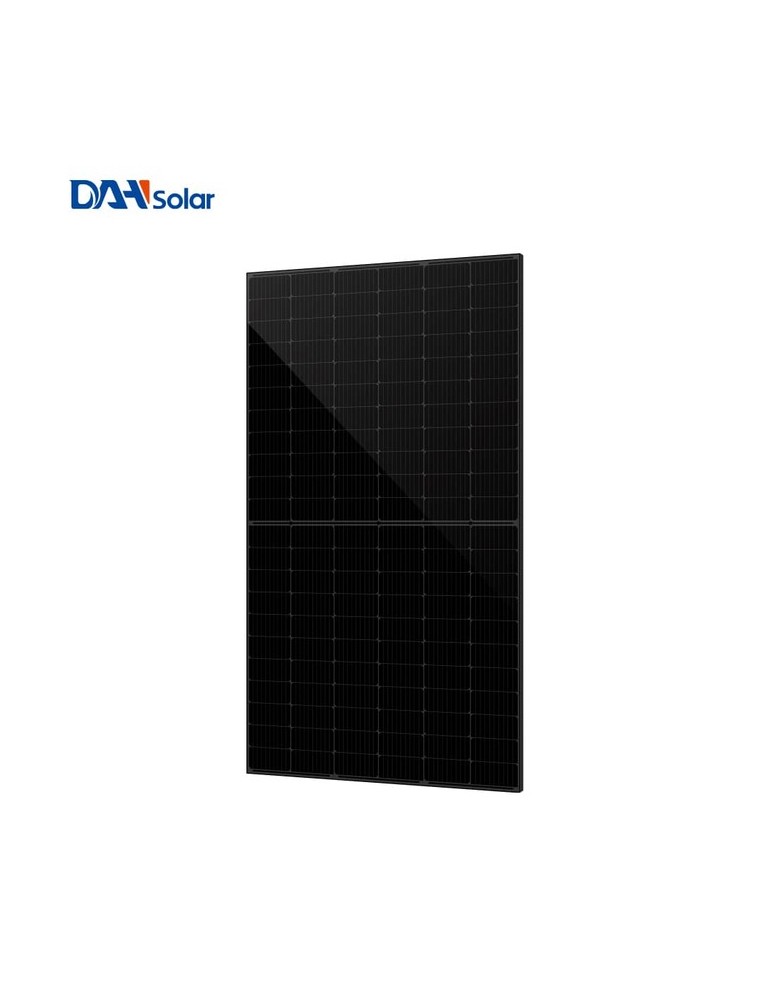

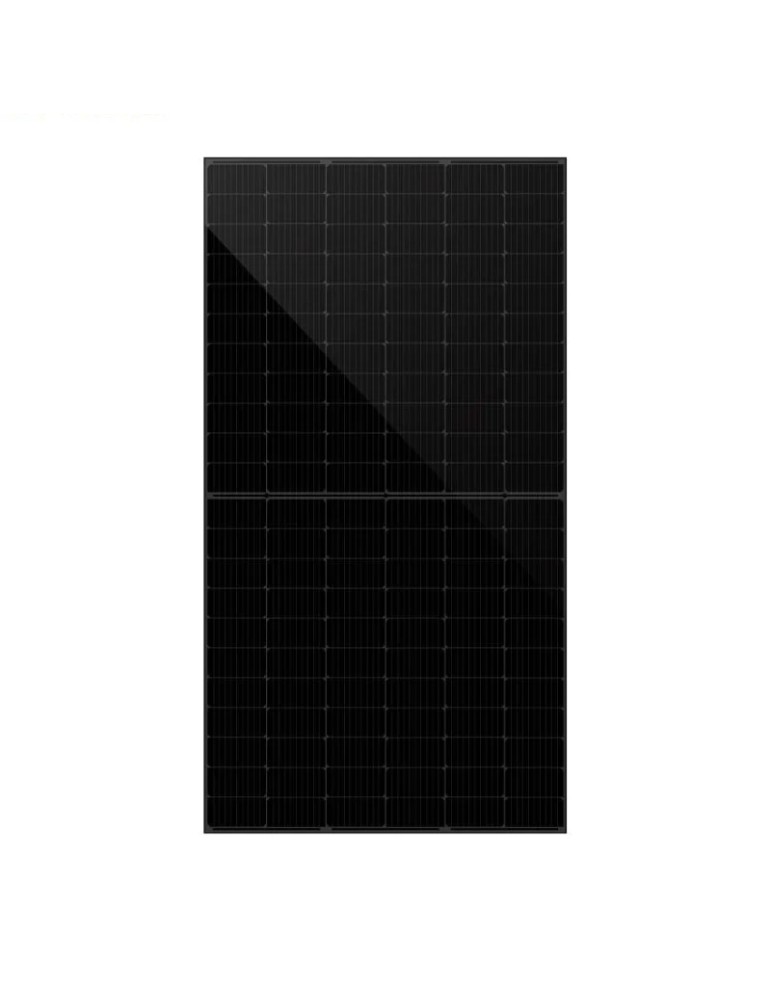

455W DAH Solar Full Screen DHM-T60X10/FS(BB) PV Module

Global Patents Technology

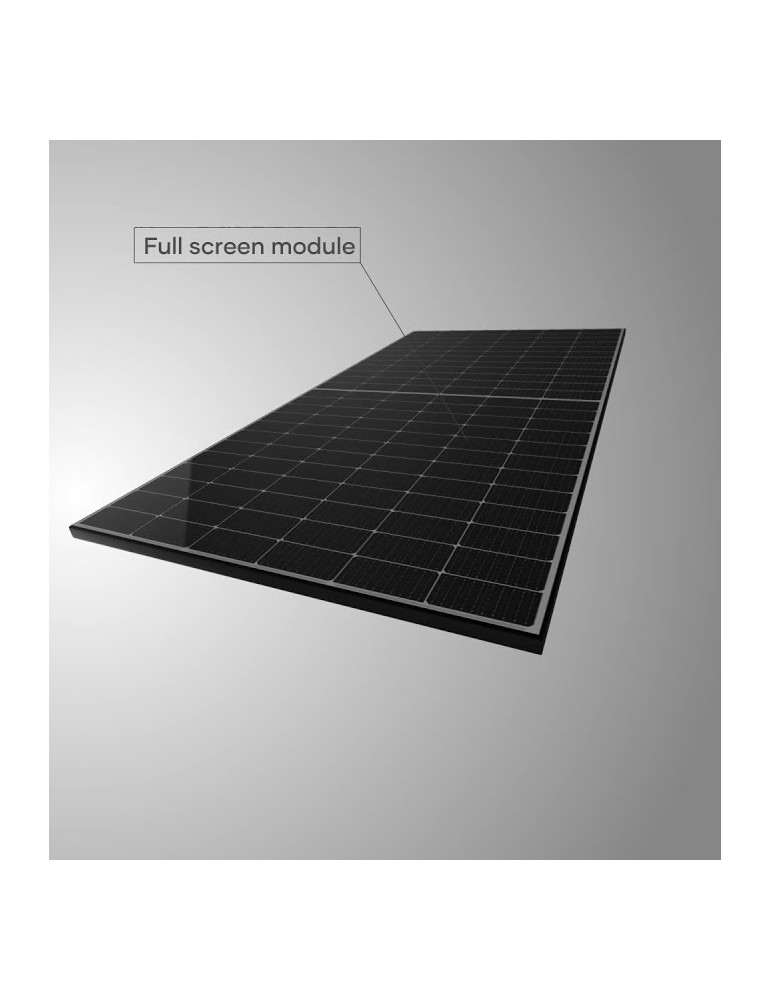

Full Screen PV Module

No Dust and Dirt on the Surface

Increase Power Generation

Availability In Stock
Pricing The quote excludes VAT & transportation costs
Minimum Order Quantity            1 Pallet
Shipping Type On request
Category

Solar Panel/Full Screen/All Black/Three-cut Battery
100 Items
DAH Solar
Quantity
Add to Wishlist
Add to Compare

The minimum purchase order quantity for the product is 34.

Home,  Solar Panels
Description

Low Current, Increase Power Generation

1/3 design, lower current and lower loss

Increase Power Generation by 6.15%+

Panel is capable to decrease power generation loss caused by dust, reduce the hot spot risk

Curved Surface 128 degree R Angel Reduce Holding Pressure by 75%+

Curved frame with ergonomic design, optimized delivery and installation experience

Revolutionary Assembling Technology

Using excellent frame assembling technology, strong adhesion, durable in use

Excellent Mechanical Load Capacity

Cerfified by dust-sand, salt-mist, ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400Pa) and snow load (5400Pa)

Product Details
100 Items

Data sheet

  • 1903mm*1134mm*32mm
  • 23.5kg
  • DHM-T60X10/FS (BB)

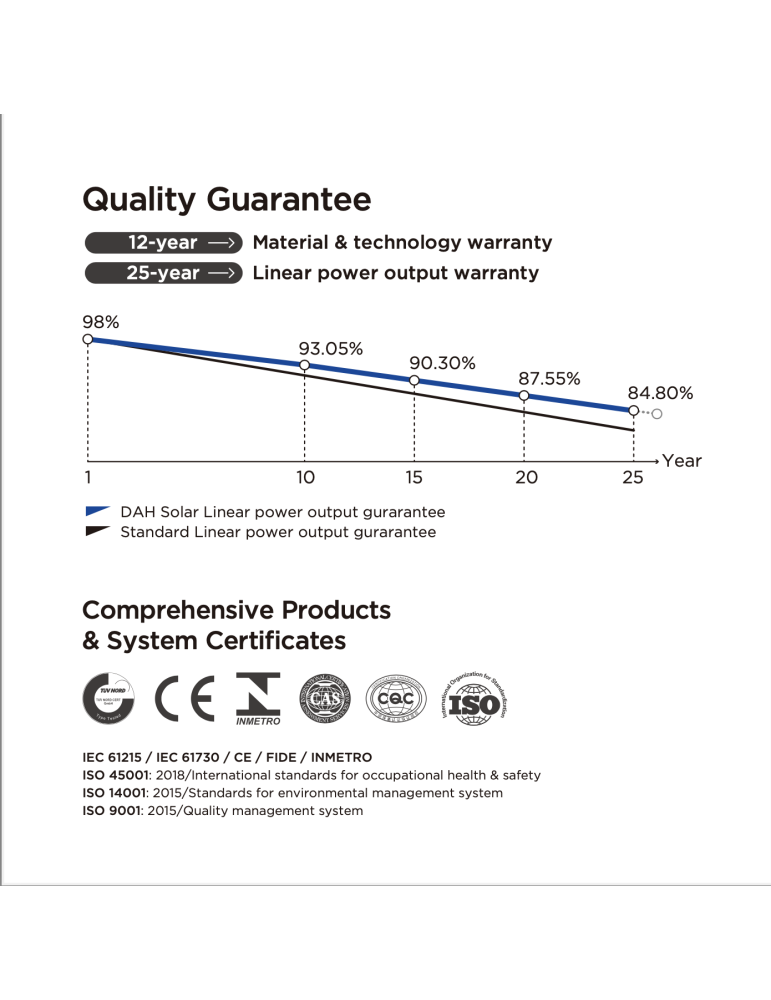

  • 12 years Product Material & Workmanship, 25 Years Linear Performance
  • 455W
  • 62.2V
  • 9.25A
  • 52.6V
  • 8.65A
  • 21.08%
  • 0~+5W
  • 1500V
  • 20A
  • IP68
  • 5400Pa
  • 2400Pa
  • -40°C~+85°C
  • 45±2°C
  • +0.050%/°C
  • - 0.31%/°C
  • -0.350%/°C
  • Irradiance 1000 W/m2, Cell Temperature 25°C, AM1.5
  • Irradiance at 800 W/m2, Ambient Temperature 20°C, Wind Speed 1 m/s
  • Black
  • Mono-facial
